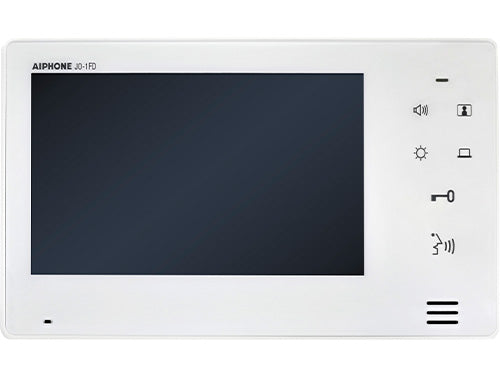

Aiphone JO-1FD is the expansion answering station for the JO Series, adding a second inside station with a 7 in. color screen and touch controls. It answers door calls, releases the door and talks hands-free (auto voice actuation) or push-to-talk, and it is less than an inch thick.
Specifications
| Display |
7 in. TFT color LCD, approx. 300,000 pixels |
| Communication |
Hands-free (VOX) or push-to-talk |
| Power source |
18 V DC from the system power supply |
| Current |
420 mA max., 38 mA standby |
| Door release contact |
N/O dry contact, 24 V AC/DC, 1 A |
| Option output |
N/O dry contact, 24 V AC/DC, 1 A |
| Mounting |
Surface wall mount, or desk mount with MCW-S/B |
| Wiring |
2-conductor to the door station, 6-conductor between inside stations |
| Distance |
Door station to farthest master: 165 ft at 22 AWG, 330 ft at 18 AWG |
| Dimensions |
5-1/8 in. H × 9-1/16 in. W × 13/16 in. D |
| Operating temperature |
32 °F to 104 °F (0 °C to 40 °C) |
| Weight |
Approx. 480 g |
Installation notes
- The JO Series is a 1 × 2 system: one master station, one expansion station and one door station
- Sold separately to add to a JOS-1AW, JOS-1VW or JOS-1FW boxed set with the JO-1MDW master
- For a larger contact or a normally closed contact, use the RY-18L relay
Related models
JO-1MDW is the master station included in every JO kit. JOS-1AW, JOS-1VW and JOS-1FW are the boxed sets with the JO-DA, JO-DV and JO-DVF door stations.
Documents
FAQ
Does the JO-1FD work on its own?
No. It is an expansion station that adds a second inside station to a JO Series system with a JO-1MDW master station.
How is it wired?
With 6-conductor cable between the inside stations and 2-conductor cable to the door station. The door station can be up to 330 ft from the farthest master with 18 AWG.
What door release contact does it have?
A normally open dry contact rated 24 V AC/DC, 1 A. Use an RY-18L relay for a larger or normally closed contact.
How is it mounted?
On the wall, or on a desk with the MCW-S/B stand.
