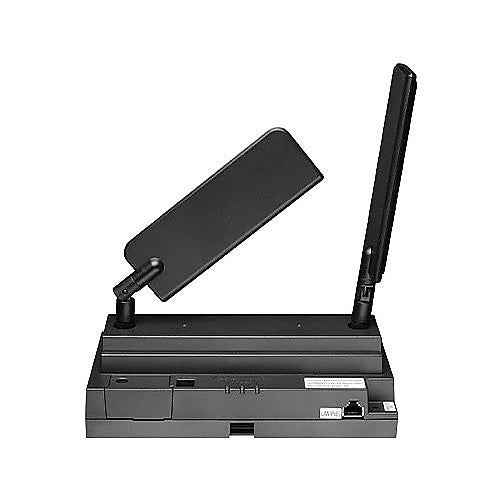

Aiphone IXGW-TGW is the IXG cloud gateway adaptor with SIM card for the IX | IXG Series IP video intercom. It lets calls reach the cloud-based mobile apps and phone numbers, so users can speak to visitors remotely and release the door. Once activated, the included AT&T nano SIM provides an LTE connection, and each adaptor handles eight simultaneous intercom calls and one phone call.
The adaptor is powered over Ethernet and connects to the IXG system LAN. Its SIM is activated through AiphoneCloud, and the gateway supports encryption with TLS 1.2 and IEEE 802.1X port security.
Specifications
| Power |
PoE |
| Consumption |
2.8 W standby, 5.8 W maximum |
| LAN |
Ethernet 10BASE-T / 100BASE-TX |
| Wireless network |
LTE, WCDMA |
| SIM |
AT&T nano SIM, included |
| Channels |
8 intercom, 1 phone |
| Encryption |
TLS 1.2, IEEE 802.1X |
| Operating temperature |
14°F to 122°F (-10°C to 50°C) |
| Dimensions |
4-1/4 x 8-1/4 x 2-3/8 in. (108.5 x 210 x 61 mm) |
| Antenna length |
5-9/16 in. (141.3 mm) |
Features
- Eight simultaneous calls per adaptor
- Mobile app and phone number calling through the cloud
- Remote door release from the app
- SIM activated in AiphoneCloud
Related models
- IXG-DM7-HIDA: IP video entrance station
- IXG-2C7: IP video tenant station
- IXGW-LC: elevator lift control adaptor
FAQ
What does the IXGW-TGW do?
It lets IXG system calls reach cloud-based mobile apps and phone numbers, so users can talk to visitors and release the door remotely.
Does it include a SIM card?
Yes. An AT&T nano SIM is included and provides an LTE connection once activated in AiphoneCloud.
How many calls can it handle?
Eight simultaneous intercom calls and one phone call per adaptor.
How is it powered?
By PoE, drawing 2.8 W in standby and 5.8 W maximum.
