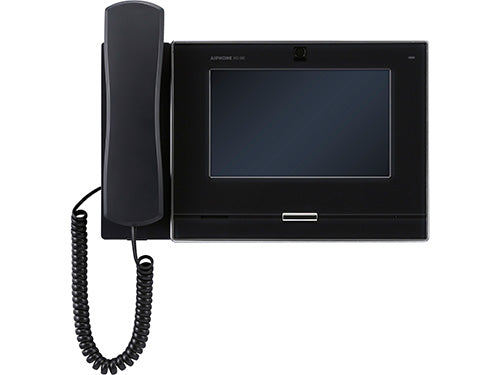

Aiphone IXG-MK is an IP video guard station for the IX | IXG Series, with a 7 in. touchscreen and a handset. It lets a concierge, receptionist or security guard answer calls from entrance, tenant and door stations, release the door of the connected station, and make building-wide announcements.
Specifications
| Display |
7 in. TFT LCD touchscreen, 800 × 400 |
| Camera |
1/3 in. CMOS, 720p |
| Communication |
Full duplex with handset, or hands-free |
| Power |
PoE, IEEE 802.3af class 0, 4.32 W |
| Recording |
Audio/video of active conversations to a microSD card (not supplied) |
| Mounting |
Desk stand at 30°, 45° or 60°, or wall mount with included bracket |
| Dimensions |
8-1/16 in. H × 11 in. W × 2-3/16 in. D |
| Operating temperature |
32 °F to 104 °F (0 °C to 40 °C) |
| Compatibility |
All IX | IXG Series devices |
Features
- Answers calls from entrance stations, tenant stations and individual door stations
- Touch key releases the door associated with the connected station
- Hands-free (VOX) or handset communication
- Call history and microSD recording of conversations
Related models
Other IX | IXG answering devices include the IXG-2C7 tenant station, the IX-MV7 master stations and the IX-SOFT PC master station software.
FAQ
What systems is the IXG-MK used with?
It is compatible with all Aiphone IX | IXG Series devices and serves as the guard station in IXG multi-tenant systems.
How is it powered?
By PoE, IEEE 802.3af class 0, with a 4.32 W power draw.
Can it record calls?
Yes. Audio and video of active conversations can be stored on a microSD card, which Aiphone does not supply.
How is it mounted?
On its multi-angle desk stand (30°, 45° or 60°) or on a wall with the included bracket.
