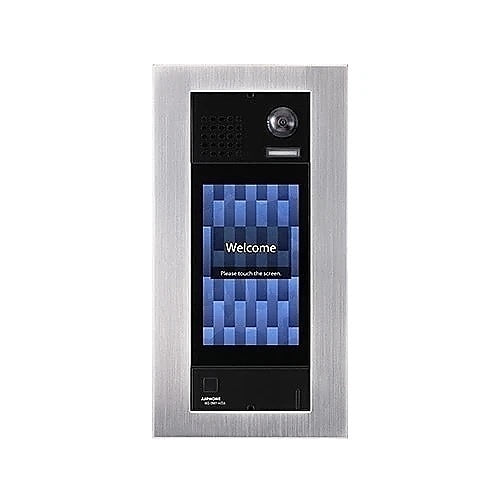

Aiphone IXG-DM7-HIDA is an IP video entrance station for the IX | IXG Series with a built-in HID card reader. It has a 7 in. LCD directory screen, a 720p HD camera, a motion sensor and a T-coil. The screen activates when a visitor approaches, and the visitor can then place a call and be seen on the tenant station or the mobile app.
The built-in HID reader supports Prox or iCLASS 26-bit and 37-bit cards, Aiphone 40-bit cards, and Corporate 1000 35-bit and 48-bit cards, and the station can act as an independent access control panel for its reader. It is powered over Ethernet, records to an on-board microSD card, and has a stainless steel panel with a tamper sensor and IP65 and IK08 ratings.
Specifications
| Power |
PoE (IEEE 802.3af class 0) |
| Power draw |
4.2 W standby, 12.7 W maximum |
| Screen |
7 in. TFT display, 800 x 400 |
| Camera |
1.23 megapixel fixed |
| Audio / video |
Full-duplex; G.711; H.264 |
| Card types |
HID iClass, SEOS, iClass SR, iClass SE (13.56 MHz); HID Prox, Indala Prox (125 kHz) |
| Card formats |
H10301 26-bit, H10302/H10304 37-bit, Aiphone 40-bit, Corporate 1000 35/48-bit |
| Port security |
IEEE 802.1X |
| Operating temperature |
-22°F to 140°F (-30°C to 60°C) |
| Dimensions |
13-11/16 x 7-3/16 x 2 in. (347.7 x 182.6 x 50.8 mm) |
| Ratings |
IP65, IK08 |
Features
- Simple user interface
- Hands-free audio communication
- On-board recording with microSD card
- Stainless steel panel with tamper sensor
- Programmable through AiphoneCloud Remote Management
Related models
- IXG-2C7: IP video tenant station
- IX-MV7-HB: IP video answering station with handset
- SBX-IXGDM7: surface mount box
- IXG-DM7-BOX: flush mount box
FAQ
Which cards does the built-in reader accept?
Prox or iCLASS 26-bit and 37-bit cards, Aiphone 40-bit cards, and Corporate 1000 35-bit and 48-bit cards, across 13.56 MHz and 125 kHz technologies.
How is it powered?
By PoE (IEEE 802.3af class 0), drawing 4.2 W in standby and up to 12.7 W.
Can it control the door without a separate access panel?
Yes. Aiphone states the station can act as an independent access control panel for its built-in HID reader.
Is it rated for outdoor entrances?
It has IP65 and IK08 ratings and operates from -22°F to 140°F (-30°C to 60°C).
