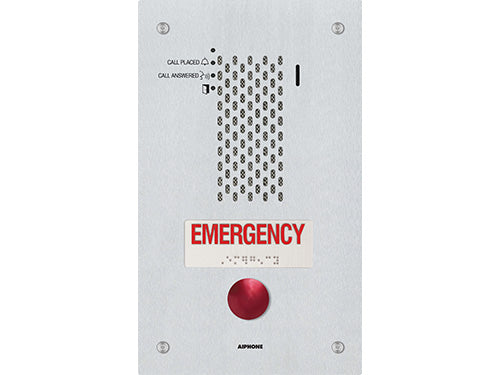

The IX-SSA-RA and IX-SSA-2RA are flush mount, IP addressable emergency call stations. The IX-SSA-RA has a single emergency call button and placard with raised lettering and Braille signage. The IX-SSA-2RA has an emergency button and a standard call button with a call and emergency placard with raised lettering and Braille signage. The emergency button can be programmed to call up to 2 different stations. The call button can call up to 2 different stations. Both units are weather resistant (IP65) and connect to a network using Cat-5e/6 cable. Both stations are SIP compliant. Audio can be captured on a micro SD card. The stations have a 6output that can be used for paging or communication. There are 2 contact outputs that can be programmed to trigger during door release, when the 6output is used, or based on the status of the station. Sound files can be uploaded for custom messages to be played during certain functions. The stations have audible and visual indications for calling, communication, and door release.
FAQ
How is the IX-SSA-RA mounted?
Flush mounted with the included back box, or surface mounted with the SBX-IDVFRA stainless steel surface box. It is also compatible with the WB-CA, WB-HA, WB-CE and WB-HE emergency wall boxes or modular towers.
How is it powered?
PoE (IEEE 802.3af class 0) or 24 VDC with the PS-2420UL. Power draw is 3.36 W at 48 VDC.
Can it be used outdoors?
Yes. It is rated IP65 and IK08, for -40°F to 140°F (-40°C to 60°C).
What is the difference from the IX-SSA-2RA?
The IX-SSA-RA has a single emergency call button; the IX-SSA-2RA adds a standard call button.
