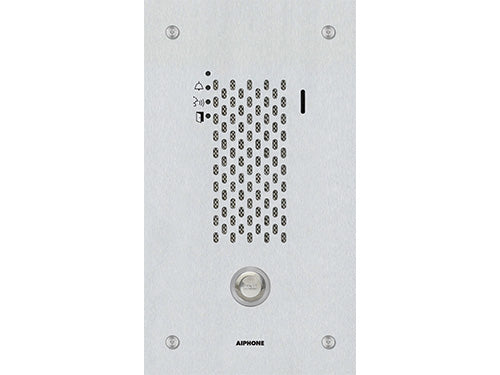

Aiphone IX-SSA is a flush-mount, IP addressable audio door station for the IX Series. It is weather and vandal resistant (IP65) in stainless steel, connects to the network with Cat-5e/6 cable, and is SIP 2.0 compliant, so it can be used with or without other IX Series stations.
The station can call up to 20 different stations with three call levels. It has a 600 Ω output for paging or communication, two programmable contact outputs and six trigger inputs, and audio can be captured on a micro SD card (not supplied).
Specifications
| Power |
PoE (IEEE 802.3af class 0) or 24 VDC (PS-2420UL) |
| Power draw |
3.36 W |
| Network |
RJ45 in/out with PoE pass-through (802.3at Type 2 PoE+) |
| Audio codec |
G.711 (µ-law, A-law), G.722 |
| Protocols |
IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS |
| Port security |
IEEE 802.1X |
| Operating temperature |
-40 to 140 °F (-40 to 60 °C) |
| Protection |
IP65, IK07 |
| Dimensions |
10-7/16 in. H x 5-7/8 in. W |
Features
- Illuminated call button
- Status, call, communication and door release indicators
- Custom sound files for door release, call placed, communication start and error messages
Related models
- IX-DVF: flush-mount IP video door station
Documents
FAQ
Does the IX-SSA need a separate power supply?
No, it can run on PoE (IEEE 802.3af class 0); a 24 VDC PS-2420UL supply is the alternative.
Can it work with SIP phones?
Yes. It is SIP 2.0 compliant and can be used with or without other IX Series stations.
Is it suitable outdoors?
It is weather and vandal resistant, rated IP65 and IK07, from -40 to 140 °F.
How many stations can it call?
Up to 20 different stations, with three call levels.
