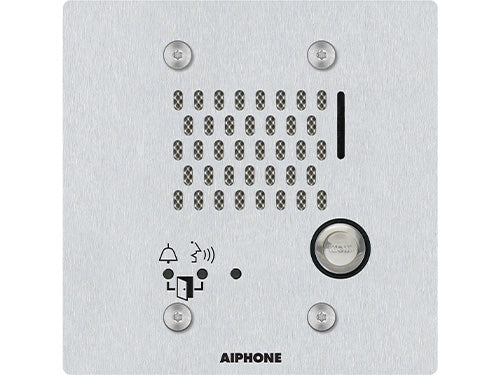

The Aiphone IX-SS-2G is a two-gang, flush-mount IP audio door station for the IX | IXG Series, with a vandal and weather resistant stainless steel faceplate. It connects to the network over Cat-5e/6 cable, is SIP compliant and is compatible with all IX | IXG devices.
The station can call up to two different stations with three call levels to choose from, and custom sound files can be uploaded for door release, call placed, communication start and error messages. It gives audible and visual indication for calling, communication and door release, with an illuminated call button.
Specifications
| Power source |
PoE (IEEE 802.3af class 0) |
| Power draw |
3.36 W |
| Audio codec |
G.711 (µ-law, A-law), G.722 |
| Volume |
73 to 96 dB |
| Port security |
IEEE 802.1X |
| Operating temperature |
-40 to 140°F (-40 to 60°C) |
| Protection |
IP65, IK08 |
| Dimensions |
4-3/4 x 4-3/4 in. |
| Inputs / outputs |
1 trigger input, 1 contact output |
Installation notes
- Flush mount in a locally available 2-gang box, 2-1/2 in. deep or greater
- Surface mount with the SBX-2G/A stainless steel surface mount box
- Programming through AiphoneCloud remote management or the support tool
Related models
The IX-SS-2G-JP is the version made in Japan. Video door stations in the series include the IX-DVF-4A.
FAQ
Does the IX-SS-2G have a camera?
No. It is an audio-only IP door station.
How is it mounted?
Flush in a 2-gang box at least 2-1/2 in. deep, or on the surface with the SBX-2G/A stainless steel surface mount box.
Is it suitable outdoors?
Yes. It is IP65 weather resistant and IK08 impact rated, and operates from -40 to 140°F.
How is it powered?
By PoE (IEEE 802.3af class 0), drawing 3.36 W.
