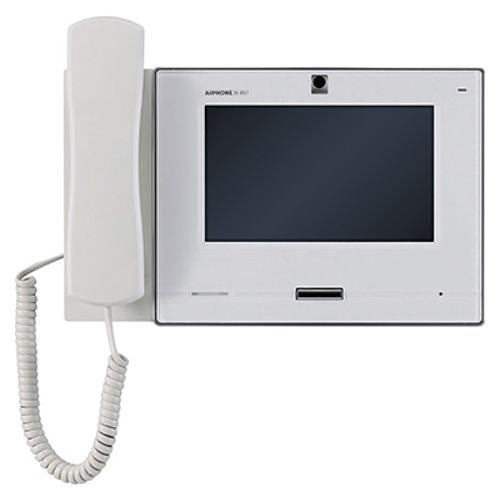

The Aiphone IX-MV7-HW-JP is a TAA-compliant IP video answering station with a 7 in. touchscreen and handset for the IX | IXG Series. It is made in Japan, connects to the network over Cat-5e/6 cable, is SIP compliant, and can stand on the included desk stand or be mounted to a wall.
It answers calls from entrance, door and other answering stations, can monitor one station or scan up to 500 stations in its address book, and provides line supervision and scheduled device checks of all addressed stations. Audio and video of active conversations can be stored on a microSD card.
Specifications
| Power source |
PoE (IEEE 802.3af class 0) |
| Power draw |
4.32 W |
| Display |
7 in. LCD touchscreen |
| Camera |
1/3 in. CMOS, 480p, with privacy shutter |
| Communication |
Hands-free (full-duplex), push-to-talk, or handset (full-duplex) |
| Audio / video codecs |
G.711, G.722 / H.264/AVC, motion JPEG |
| Port security |
IEEE 802.1X |
| Inputs / outputs |
Four trigger inputs, two contact outputs |
| Operating temperature |
32 to 104°F (0 to 40°C) |
| Dimensions |
8-1/16 x 11 x 2-3/16 in. (H x W x D) |
| Certifications |
UL 62368-1, cUL 62368-1 |
Features
- 500 station address book; call by directory or by direct dial
- Eight speed dial buttons to call, page, monitor or control a contact closure
- Page all units or selected groups; bell schedule of up to 50 events per day
- Picture-in-picture view of an intercom camera and an associated ONVIF Profile S camera
- Door release unlocks only the entrance associated with the connected door station
- Multi-angle desk stand (30°, 45°, 60°); 8 ohm 0.5 W speaker output and 600 ohm audio input
Related models
The IX-MV7-HB-JP is the black TAA version. The IX-MV7-B and IX-MV7-W are the hands-free versions without handset.
Documents
FAQ
Is the IX-MV7-HW-JP TAA compliant?
Yes. Aiphone states it is made in Japan and qualified for TAA requirements.
How is it powered?
By PoE (IEEE 802.3af class 0), drawing 4.32 W.
How many stations can it reach?
Its address book holds 500 stations. It can monitor one station or scan monitor up to 500 stations in its address book.
Can it display security cameras?
Yes. It can show an associated ONVIF Profile S camera alongside an intercom's camera using picture-in-picture.
