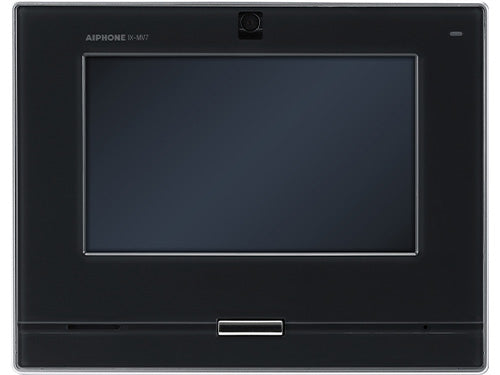

The IX-MV7 is an IP addressable hands-free master station with a 7" color touchscreen. It can be wall or desk-mounted (desk stand included). It connects to a network using CAT5e/6 cable and is SIP compliant. Audio and video of active conversations can be captured and stored on a microSD card. Each master station has an address book of 500 stations and can monitor a single station or scan monitor up to 500 stations within the address book. The master station offers line supervision and a scheduled device check of stations in its address book. It has the ability to page all units or groups of units and offers bell scheduling with up to 50 events per day. The master station has 8-speed dial buttons that can be used to call, page, monitor, or control a contact closure. It has a built-in camera with a privacy shutter. The master station can view a selected intercom's camera as well as an associated ONVIF Profile S camera by using the picture-in-picture function. It has the ability to release the door that is associated with the station that it is communicating with. Stations can be called by using the directory or by dialing the station's number directly.
FAQ
How is the IX-MV7 powered?
By PoE (IEEE 802.3af class 0), with a power draw of 4.32W.
How many stations can it handle?
It has a 500 station address book and can monitor one station or scan monitor up to 500 stations in its address book.
Can it view IP cameras?
Yes. Picture-in-picture shows a selected intercom camera together with an associated ONVIF Profile S camera.
Does it have I/O?
Yes: two contact outputs, four trigger inputs, an 8 ohm 0.5W speaker output and a 600 ohm audio input.
