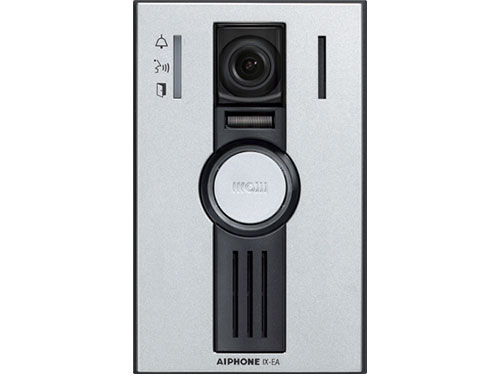

Aiphone IX-EA is a one-gang surface mount IP video door station. It is SIP compliant and ONVIF Profile S compliant, and it can stream video over ONVIF and RTSP.
It works with all IX and IXG series devices. Power comes over Ethernet (IEEE 802.3af PoE), and the frame and back box are made of self-extinguishing plastic.
Features
- SIP and ONVIF Profile S compliant, with video streaming over ONVIF and RTSP
- IEEE 802.3af PoE powered
- White LED for low-light illumination
- Manual camera vertical adjustment of +13 or -8 degrees
- microSD card slot (card not provided)
- Weather resistant
- 1 contact output and 1 trigger input
- Compatible with all IX and IXG series devices
Specifications
| Product type |
IP video door station |
| Material |
ABS |
| Camera resolution |
1.2 MP |
| Horizontal viewing angle |
170° |
| Vertical viewing angle |
100° |
| Minimum illumination |
5 lux |
| Power consumption |
5.18 W |
| Standards |
IEEE 802.3af, IEEE 802.1X |
| Height |
6.3" |
| Width |
3.9" |
| Depth |
1.7" |
| TAA compliant |
No |
