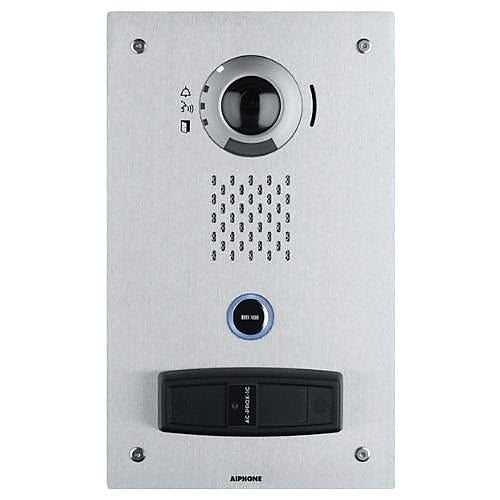

Aiphone IX-DVF-PR is a flush-mount, vandal-resistant IP video door station for the IX | IXG Series with a built-in AC-PROX-1G proximity card reader. It has a 1.23 MP camera, a white LED for low light, and a stainless steel panel rated IP65 and IK08. A back box is included.
Specifications
| Camera |
1/3 in. CMOS, 1.23 MP; vertical adjustment +15°, 0° or -8° |
| Minimum illumination |
5 lux; white LED for low light |
| Card reader |
Built-in AC-PROX-1G, 125 kHz |
| Power |
PoE (IEEE 802.3af class 0) or 24 VDC (PS2420UL) |
| PoE pass-through |
802.3at Type 2 PoE+ |
| Power draw |
5.28 W door station; reader 45 mA at 5 to 14 VDC |
| Inputs / outputs |
Two contact outputs, six trigger inputs |
| Protection |
IP65, IK08 |
| Dimensions |
11-11/16 in. H × 7 in. W × 2-1/16 in. D |
| Operating temperature |
-40 °F to 140 °F (reader -31 °F to 140 °F) |
| Mounting |
Flush, back box included |
Features
- Combines video intercom and card access at one opening
- Weather and vandal resistant stainless steel panel
- Slot for a microSD card
Related models
The IX-DVF is the same flush-mount station without the card reader. The IXG-MK guard station and IX-MV7 master stations answer its calls.
FAQ
Which card reader is built in?
An Aiphone AC-PROX-1G 125 kHz proximity reader.
How is the IX-DVF-PR powered?
By PoE (IEEE 802.3af class 0) or 24 VDC from a PS2420UL. It also passes through 802.3at Type 2 PoE+.
Is it rated for outdoor use?
Yes. It is rated IP65 and IK08 and operates from -40 °F to 140 °F; the card reader is rated from -31 °F.
Is a back box included?
Yes, the flush-mount back box is included.
