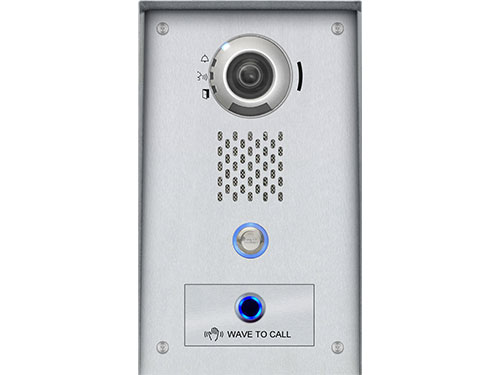

The IX-DVF-HW IP video door station with hand wave call sensor is weather resistant and includes the SBX IXDVFRA surface mount box. It also includes the PS-POE to power the sensor. It connects to a network using Cat-5e/6 cable and is SIP compliant.The IX-DVF-HW is equipped with a 1.23 megapixel fixed color camera. The camera angle can be vertically adjusted using a lever on the back of the station. The video can be streamed to third-party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card. The IX-DVF-HW can be programmed to call up to 2 stations. There are three call level selections. The IX-DVF-HW has a 6? output that can be used for paging or communication. There are two contact outputs that can be programmed to trigger during door release, when the 6? output is used, or based on the status of the station. There are six trigger inputs, with one used for the touchless sensor. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message). The stations have audible and visual indications for calling, communication, and door release.
FAQ
How is the IX-DVF-HW powered?
PoE (IEEE 802.3af class 0) or 24 VDC with the PS-2420UL power supply. Power draw is 5.28 W.
How close must a hand be to place a call?
The hand wave call sensor has a detection range of 0 to 10 cm.
Can the video be viewed on third-party systems?
Yes. Video can be streamed to third-party devices using ONVIF Profile S or RTSP, and the station is SIP compliant.
What is the operating temperature range?
-4°F to 131°F (-20°C to 55°C).
