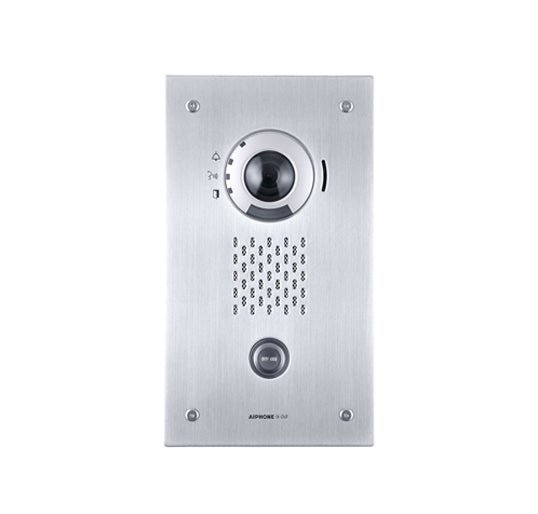

Aiphone IX-DVF is a flush mount IP video door station for the IX | IXG Series, with a vandal and weather resistant stainless steel faceplate. It is SIP compliant and ONVIF Profile S compliant, streams video through ONVIF and RTSP, and is compatible with all IX | IXG Series devices.
The station has a 1.23 megapixel camera with manual vertical adjustment of +15°, 0° or -8°, a white LED for low-light illumination, two contact outputs and six trigger inputs. It is powered by PoE with PoE pass-through, or by 24 VDC, and it can record conversations to a microSD card (not supplied). It flush mounts with the included back box, or surface mounts with the SBX-IDVF stainless steel box.
Specifications
| Power |
PoE (IEEE 802.3af class 0) or 24 VDC (PS-2420UL); pass-through needs 802.3at PoE+ |
| Power draw |
5.28 W |
| Camera |
1/3 in. CMOS, 1.23 megapixel, 5 lux minimum |
| Codecs |
G.711, G.722 audio; H.264/AVC, motion JPEG video |
| Volume |
73 to 96 dB |
| I/O |
2 contact outputs, 6 trigger inputs |
| Port security |
IEEE 802.1X |
| Operating temperature |
-40°F to 140°F (-40°C to 60°C) |
| Ratings |
IP65, IK08 |
| Dimensions |
10-7/16 x 5-7/8 in. (265 x 150 mm) |
| Certification |
UL 62368-1, cUL 62368-1 |
Features
- SIP and ONVIF Profile S compliant
- Stainless steel faceplate, weather and vandal resistant
- White LED for low-light illumination
- Call recording to microSD card (not provided by Aiphone)
Related models
- SBX-IDVF: stainless steel surface mount box
- IX-DV: surface mount IP video door station
- IX-DVF-2RA: IP video emergency station
FAQ
How can the IX-DVF be mounted?
Flush mounted with the included back box, or surface mounted with the SBX-IDVF stainless steel surface mount box.
How is it powered?
By PoE (IEEE 802.3af class 0) or 24 VDC from a PS-2420UL. PoE pass-through requires 802.3at Type 2 PoE+.
Is it rated for outdoor use?
It is IP65 and IK08 rated and operates from -40°F to 140°F (-40°C to 60°C).
Can the camera angle be adjusted?
Yes. The camera adjusts vertically to +15°, 0° or -8° by hand.
