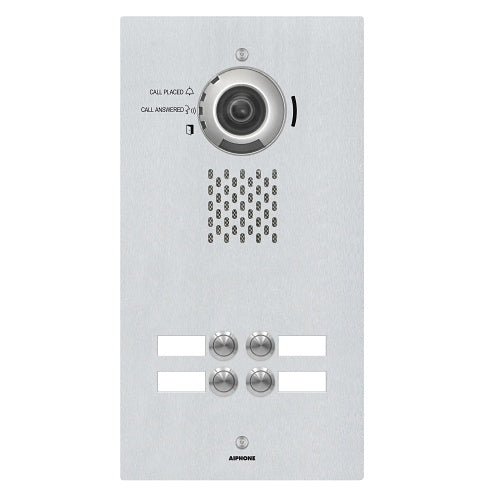

The Aiphone IX-DVF-4A is a flush-mount, vandal and weather resistant IP video door station for the IX | IXG Series, with a stainless steel front cover and four programmable call buttons. It is SIP compliant and ONVIF Profile S compliant, can stream video through ONVIF and RTSP, and is compatible with all IX | IXG Series devices.
A white LED provides low-light illumination, and the camera angle can be set manually to +15°, 0° or -8°. The four call buttons are labeled, and a blank label template is included.
Specifications
| Power source |
PoE (IEEE 802.3af class 0) or 24 V DC (PS-2420UL) |
| Power draw |
5.28 W |
| Camera |
1/3 in. CMOS, 1.23 megapixel; 5 lux minimum |
| Audio / video codecs |
G.711, G.722 / H.264/AVC, motion JPEG |
| Volume |
73 to 96 dB |
| Port security |
IEEE 802.1X |
| Inputs / outputs |
Two trigger inputs, two contact outputs |
| Operating temperature |
-40 to 140°F (-40 to 60°C) |
| Protection |
IP65, IK08 |
| Dimensions |
13-11/16 x 7-3/16 in. (H x W) |
| Certifications |
UL 62368-1, cUL 62368-1 |
Features
- Four labeled call buttons for four destinations
- SIP and ONVIF Profile S compliant
- PoE passthrough (requires 802.3at Type 2 PoE+)
- Stainless steel, weather and vandal resistant
- Programming through AiphoneCloud remote management or the support tool
Related models
The IX-DVF is the single-button video door station, and the IX-DVF-6 has six call buttons.
FAQ
How is the IX-DVF-4A powered?
By PoE (IEEE 802.3af class 0) or 24 V DC from the PS-2420UL, drawing 5.28 W. PoE passthrough requires 802.3at Type 2 PoE+.
How many call buttons does it have?
Four labeled call buttons, with a blank label template included.
Can its video be used by a VMS?
Yes. It is ONVIF Profile S compliant and can stream video through ONVIF and RTSP.
Is it suitable outdoors?
Yes. It is weather and vandal resistant, rated IP65 and IK08, and operates from -40 to 140°F.
