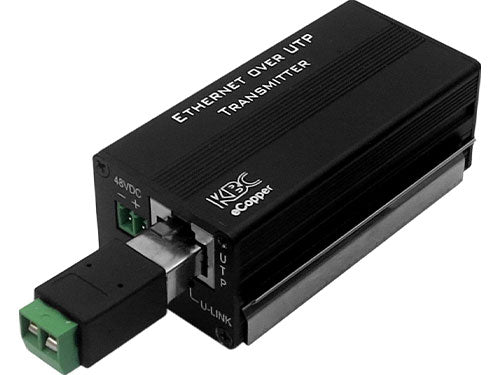

Aiphone IPW-1VC is an analog to IP converter set that uses existing 2-conductor copper wire to connect an IX | IXG Series network intercom station. The set includes an Ethernet-to-UTP transmitter and receiver, two RJ45-to-2-wire converters and a power supply. Use it where cable is already in place and pulling new network cable is too costly.
Specifications
| Contents |
Ethernet-over-UTP transmitter and receiver, two RJ45-to-2-wire converters, power supply |
| Distance |
1,000 ft on 22 to 18 AWG shielded or unshielded wire (15 ft on Cat-5e/6) |
| PoE |
Supported |
| Power input |
48 V DC, 1 A |
| Dimensions |
1-7/16 in. H × 3 in. W × 1-1/8 in. D |
| Operating temperature |
-4 °F to 140 °F (-20 °C to 60 °C) |
| Compatibility |
All IX | IXG Series devices |
Features
- Reuses existing 2-conductor intercom wiring for IP stations
- Passes PoE to the connected station
- Compact transmitter and receiver housings
Related models
It connects IX | IXG stations such as the IX-DVF door station and IXG-MK guard station over existing wire.
FAQ
How far can the IPW-1VC run over existing wire?
Up to 1,000 ft on 22 to 18 AWG shielded or unshielded 2-conductor wire.
Does it support PoE?
Yes, it supports PoE.
What is included in the set?
An Ethernet-to-UTP transmitter and receiver, two RJ45-to-2-wire converters and a power supply.
Which stations can it connect?
All Aiphone IX | IXG Series devices.
