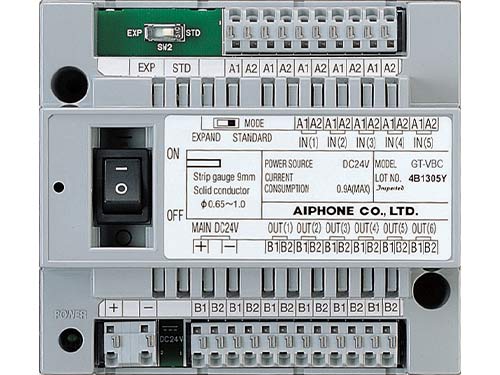

Aiphone GT-VBC is the video bus control unit for the GT Series multi-tenant video intercom system. It supplies power to the video line of the GT system and is DIN rail mounted, with wall mounting available using the W-DIN11.
It is powered from 24 VDC using the Aiphone PS-2420UL and draws up to 0.9 A. The housing is self-extinguishing ABS plastic.
Specifications
| Function |
Video bus control, powers GT video line |
| Power source |
24 VDC, use PS-2420UL |
| Power draw |
0.9 A max |
| Mounting |
DIN rail (not included); wall mount with W-DIN11 |
| Material |
Self-extinguishing ABS plastic |
| Wire type |
2-cond., solid, non-shielded, PE insulation; #871802 for video and power |
| Dimensions |
9-9/16 in. H x 11-7/16 in. W x 7/8 in. D |
Related models
- GT-BC: GT Series bus control unit
- GT-1C7: video tenant station powered by the GT-BC and GT-VBC
FAQ
What power supply does the GT-VBC need?
24 VDC; Aiphone specifies the PS-2420UL. Power draw is 0.9 A maximum.
How is it mounted?
On a DIN rail (not included), or on a wall with the W-DIN11.
What wire does it use?
2-conductor, solid, non-shielded, PE insulated wire; Aiphone specifies #871802 for video and power.
