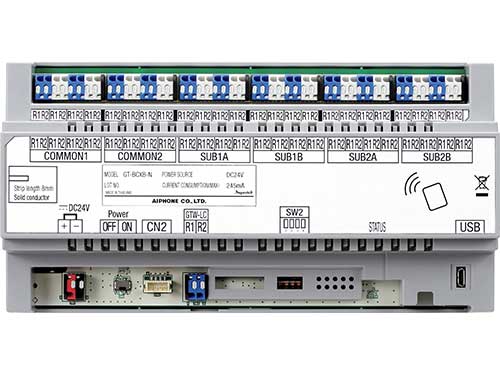

Aiphone GT-BCXB-N is an expanded bus control unit for Aiphone GT Series intercom systems. It distributes power and data to GT stations when a system grows beyond the basic configuration.
The unit is wall mounted on the supplied DIN rail and is for indoor use. It runs on 24V DC and draws up to 0.9 A.
Features
- Distributes power and data to GT Series stations in expanded systems
- 24V DC input
- Maximum consumption of 0.9 A
- Wall mounted on the supplied DIN rail
- Indoor use
Specifications
| Product Type |
Expanded audio bus control unit |
| Input Voltage |
24V DC |
| Maximum Consumption |
0.9 A |
| Mounting |
Surface mount, wall mount (DIN rail supplied) |
| Installation |
Indoor |
| NDAA Compliant |
Yes |
| TAA Compliant |
No |
| Country of Origin |
Thailand |
