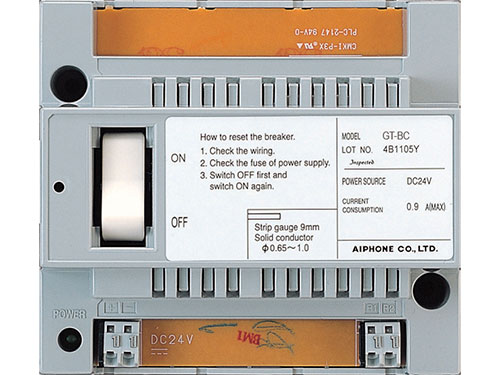

Aiphone GT-BC is an audio bus control unit for the Aiphone GT Series. It distributes power and data to GT Series stations over the audio bus, and it is wall mounted on a W-DIN11 DIN rail.
Wiring for the bus uses 2-conductor, solid, non-shielded cable with PE insulation; Aiphone #8722 is the cable type named for this unit.
Features
- Distributes power and data to GT Series stations
- Wall mounted with the W-DIN11 DIN rail
- Surface or wall mount, indoor use
- 24V DC input
- Wire type: 2-conductor, solid, non-shielded, PE insulation (Aiphone #8722)
Specifications
| Product type |
Audio bus control unit |
| Input voltage |
24V DC |
| Mounting |
Surface / wall mount |
| Installation |
Indoor |
| NDAA compliant |
Yes |
| System |
Aiphone multi-tenant color video entry |
