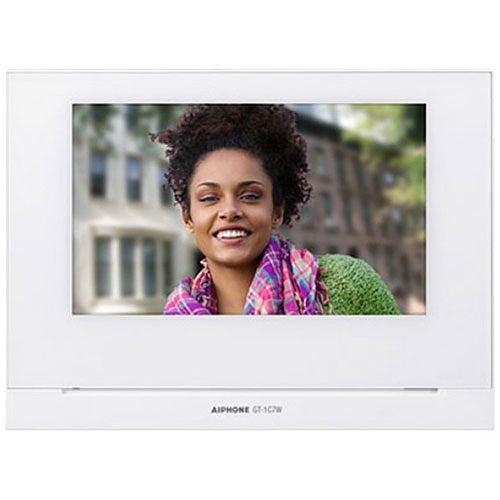

Aiphone GT-1C7W — app-compatible GT Series video tenant station with a 7 in. touchscreen, for GT Series multi-tenant intercom systems.
The GT-1C7W is used to answer incoming calls, unlock the entrance and trigger an optional output. Its guard station button calls any GT-MKB-N in the system, and pan, tilt, zoom and light control buttons adjust the entrance camera. If a pull cord or panic call button is integrated, the station emits an emergency tone when it is activated. Up to eight Aiphone Type GT mobile apps can be assigned to tenants for each GT-1C7W.
Specifications
| Model |
GT-1C7W |
| Display |
7 in. LCD touchscreen |
| Power source |
24 VDC, supplied by GT-4ZP or power supply |
| Communication |
Hands-free (VOX) or push-to-talk (simplex) |
| WLAN |
IEEE 802.11b/g/n; 3 Mbps upload/download minimum |
| Memory card |
microSDHC 4–32 GB (FAT32), Class 10 |
| Mounting |
Surface wall mount on a 1-gang box, or desk mount with MCW-S/B |
| Wire |
2-conductor solid non-shielded PE; Aiphone #872002 for audio, #871802 for video |
| Dimensions |
6-1/8 in. H x 8-1/4 in. W x 1-1/16 in. D |
| Weight |
About 1.37 lb (620 g) |
Features
- Up to eight mobile apps per tenant station
- Hands-free communication, door release and guard call
- PTZ and brightness control of the entrance camera
- Call tone and communication volume control
- One GT-1C7W plus up to three GT-1A or GT-1D audio tenant stations per suite
Related models
- GT-1C7: 7 in. video tenant station
- GT-1A and GT-1D: audio tenant stations
Documents
FAQ
Can tenants answer calls on a phone?
Yes. Up to eight Aiphone Type GT mobile apps can be assigned to tenants for each GT-1C7W, using its 802.11b/g/n WLAN connection.
How is it powered?
24 VDC, supplied by the GT-4ZP or a power supply.
Can other tenant stations be added in the same unit?
Yes. One GT-1C7W and up to three GT-1A or GT-1D audio tenant stations can be used in the same suite or apartment.
How is it mounted?
Surface wall mount on a 1-gang box, or desk mount with the MCW-S/B stand.
