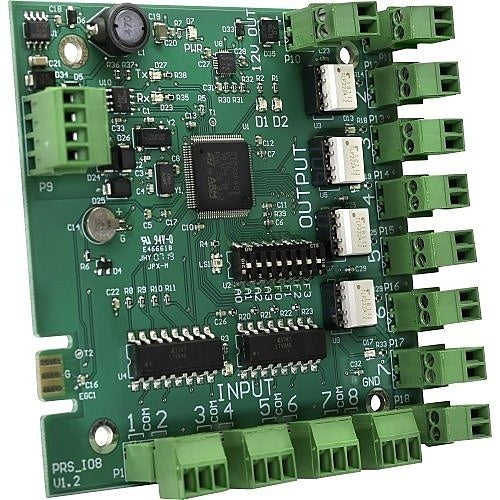

Aiphone AC-IOE is an 8-floor, 8-port I/O expander board for the Aiphone AC Series. It adds eight inputs and outputs, or floors, to an ACS-IO or ACS-ELV starter kit and ships without an enclosure.
It communicates over RS485, wired through a PRS-Strip or standard RS485 wiring, and up to seven AC-IOE boards can be added to one kit. It draws 12V DC from the main board.
Features
- Eight dry contact inputs
- Eight solid state dry contact relays
- RS485 communication via PRS-Strip or standard wiring
- Up to seven AC-IOE per ACS-IO or ACS-ELV kit
- UL and ULC certified (UL 294 / ULC 5319-5)
- 12V DC drawn from the main board
- Requires an ACS-ELV or ACS-IO starter kit
Specifications
| Function |
I/O expander, 8 floors / 8 ports |
| Communication |
RS485 |
| Power source |
12V DC from main board |
| Dimensions (H x W) |
3-1/2" x 3-3/4" |
| Standards |
UL 294 / ULC 5319-5 |
| Location |
Indoor |
