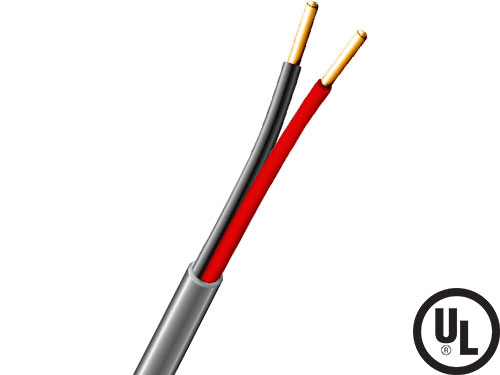

The Aiphone 871802P10C is a 1,000 ft spool of 2-conductor, 18 AWG solid, plenum-rated wire. It is low capacitance and non-shielded, and is technically matched to the wire specifications of the Aiphone systems it is designated for.
Aiphone states that using its designated wire extends the product warranty by one additional year. The wire is RoHS II and REACH compliant and made in the USA.
Specifications
| Conductors |
2 |
| Gauge |
18 AWG, solid |
| Shielding |
Non-shielded |
| Capacitance |
13.0 pF/ft |
| DC resistance |
6.39 ohms per 1,000 ft at 68°F |
| Jacket |
Plenum rated PVC |
| Cable rating |
CL3P, FPLP (UL); c(UL)us CMP FT-6 |
| Length |
1,000 ft |
| Weight |
20 lb |
Installation notes
- Plenum rated for runs through air-handling spaces
- Use where the Aiphone system documentation calls for 2-conductor 18 AWG wire
- Follow the wiring distance limits in the station installation manual
- Low capacitance construction for intercom audio and signaling
Related models
Aiphone also offers other designated cable such as the 872002P10C (2-conductor, 20 AWG plenum) and 82180210C (2-conductor, 18 AWG shielded).
FAQ
Is the 871802P10C plenum rated?
Yes. It carries CL3P and FPLP (UL) and c(UL)us CMP FT-6 ratings with a plenum-rated PVC jacket.
Is it shielded?
No. It is a non-shielded, low capacitance cable (13.0 pF/ft).
Does it affect the warranty?
Aiphone states that its designated wire extends the product warranty by one additional year.
