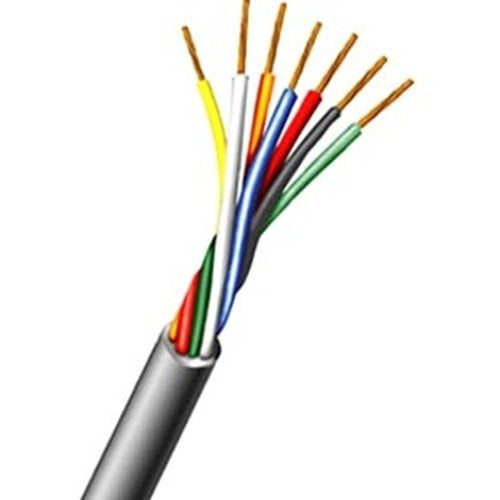

Aiphone 85220710C is a 1000 ft spool of 7-conductor, 22 AWG low-capacitance control cable from Aiphone. The cable is non-shielded and is color coded to match the MC Series.
Stranded bare copper conductors are insulated with foamed polyethylene and covered by an overall PVC jacket. It is intended for low-voltage electronic wiring in the Aiphone MC Series communication system.
Features
- 7 conductors, 22 AWG, stranded
- Low capacitance, non-shielded
- Color-coded conductors to match the MC Series
- Technically matched to designated system wire specifications
- UL and c(UL)us certified
- RoHS III and REACH compliant
- Made in USA
- Extends the product warranty by one additional year
Specifications
| Product type |
Control cable |
| Conductors |
7 |
| Wire gauge |
22 AWG |
| Conductor type |
Stranded |
| Shielding |
No |
| Insulation |
Foamed polyethylene (FPE) |
| Jacket |
PVC |
| Code ratings |
CL3, CM, FPL |
| Length |
1000 ft |
| Color |
Gray |
| Compatibility |
Aiphone MC Series communication system |
| Location |
Indoor |
