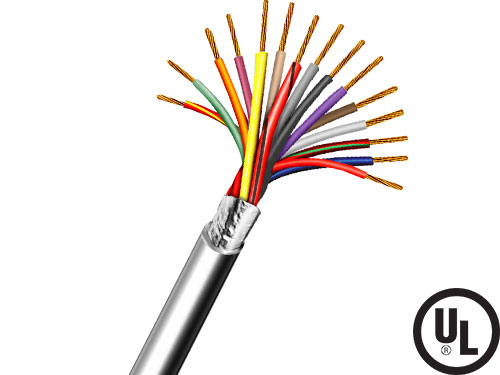

Aiphone 82222050C is a 500 ft spool of 20-conductor, 22 AWG shielded control cable from Aiphone. It is built for low-voltage electronic and intercom wiring.
The conductors are stranded bare copper with PVC insulation, wrapped in an overall shield and a gray PVC jacket. The conductor makeup is matched to the wire specifications of the Aiphone system it is designed for.
Features
- 20 conductors, 22 AWG, stranded
- Overall shield with PVC jacket
- Technically matched to designated system wire specifications
- UL and c(UL)us certified
- RoHS III and REACH compliant
- Made in USA
- Extends the product warranty by one additional year
Specifications
| Product type |
Control cable |
| Conductors |
20 |
| Wire gauge |
22 AWG |
| Conductor type |
Stranded |
| Shielding |
Yes, overall |
| Jacket / insulation |
PVC |
| Code ratings |
CL3R, CMR, FPLR |
| Length |
500 ft |
| Color |
Gray |
| Location |
Indoor |
