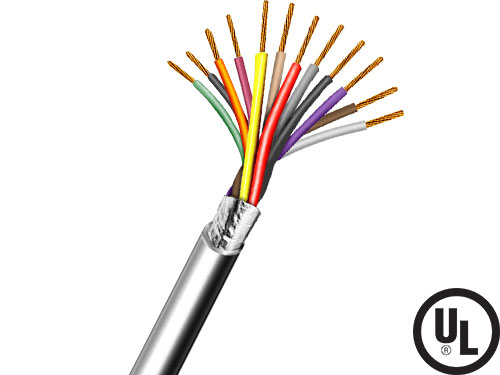

Aiphone 82221250C is a 12-conductor, 22 AWG shielded cable on a 500 ft length. Its stranded bare copper conductors have PVC insulation and sit inside an overall shield and a PVC jacket.
A 12-conductor build is meant for installations that need many separate wires in one run. It is matched to the specification of the designated Aiphone system, and using it extends the product warranty by a year.
Features
- 12 conductors, 22 AWG, stranded
- Overall shield with gray PVC jacket
- Matched to the designated system's wire specification
- Extends the product warranty by one additional year
- UL and c(UL)us certified
- RoHS III and REACH compliant
- Made in USA
Specifications
| Product Type |
Control cable |
| Conductors |
12 |
| Wire Gauge |
22 AWG |
| Conductor Type |
Stranded bare copper |
| Shielding |
Overall shield |
| Insulation / Jacket |
PVC / PVC |
| Cable Ratings |
CL3R, CMR, FPLR |
| Length |
500 ft |
| Color |
Gray |
| Environment |
Indoor |
| TAA Compliant |
Yes |
