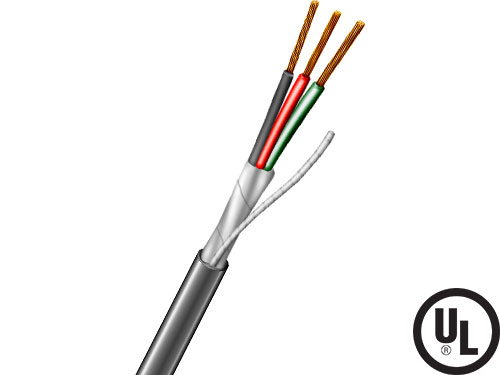

Aiphone 82220350C is a 3-conductor, 22 AWG shielded cable supplied in a 500 ft length for Aiphone intercom wiring. It combines stranded bare copper conductors, PVC insulation and an overall shield under a PVC jacket.
The cable is made to match the wire specification of the Aiphone system it is designated for and carries a warranty extension of one additional year.
Features
- 3 conductors, 22 AWG, stranded
- Overall shield with gray PVC jacket
- Matched to the designated system's wire specification
- Extends the product warranty by one additional year
- UL and c(UL)us certified
- RoHS III and REACH compliant
- Made in USA
Specifications
| Product Type |
Control cable |
| Conductors |
3 |
| Wire Gauge |
22 AWG |
| Conductor Type |
Stranded bare copper |
| Shielding |
Overall shield |
| Insulation / Jacket |
PVC / PVC |
| Cable Ratings |
CL3R, CMR, FPLR |
| Length |
500 ft |
| Color |
Gray |
| Environment |
Indoor |
| TAA Compliant |
Yes |
