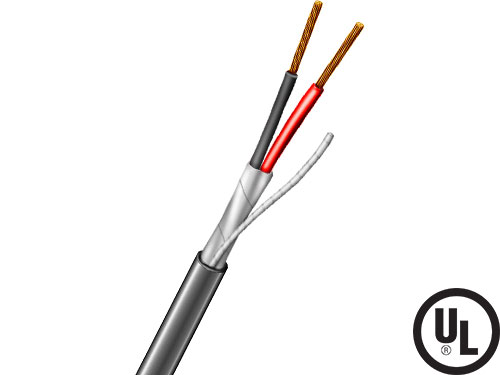

Aiphone 82220210C is a 2-conductor, 22 AWG shielded cable supplied in a 1,000 ft length. The stranded bare copper conductors are insulated with PVC and wrapped in an aluminum/mylar shield with a stranded tinned copper drain wire, all under a PVC jacket.
It is intended for low-voltage electronic wiring and is matched to the specification of the Aiphone system it is designated for.
Features
- 2 conductors, 22 AWG, stranded
- Aluminum/mylar shield with a stranded tinned copper drain
- PVC insulation and PVC jacket
- Extends the product warranty by one additional year
- UL and c(UL)us certified
- RoHS III and REACH compliant
- Made in USA
Specifications
| Product Type |
Control cable |
| Conductors |
2 |
| Wire Gauge |
22 AWG |
| Conductor Type |
Stranded bare copper |
| Shielding |
Aluminum/mylar with tinned copper drain |
| Insulation / Jacket |
PVC / PVC |
| Cable Ratings |
CL3R, CMR, FPLR |
| Length |
1,000 ft |
| Color |
Gray |
| Environment |
Indoor |
| TAA Compliant |
Yes |
