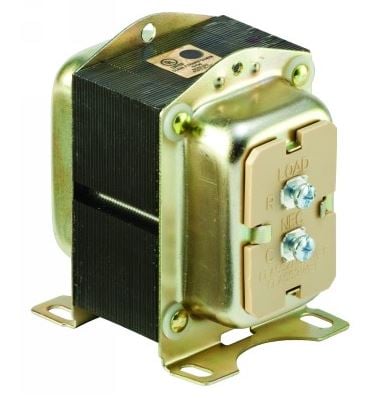

Name: Resideo AT87A1189/U Foot Mounted 277 Vac Transformer w/ 12" Lead Wires & Energy Limiting Overload Protection, AT87A1189
Brand: Resideo
SKU: AT87A1189/U
Price: 109.77 USD
Availability: InStock

Resideo AT87A1189/U Foot Mounted 277 Vac Transformer w/ 12" Lead Wires & Energy Limiting Overload Protection, AT87A1189

Roll over image to zoom in Click on image to zoom

Category: Fire Alarms
Stock: Sold Out - Call or Email for Lead Time
Weight: 0.99 lb
Brand: Resideo

Used primarily for powering 24V air conditioning circuits. Can also be used in other applications that do not exceed the listed ratings.

Features

Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements.
Meets NEMA Standard DC20-1992.
Transformer marked NEMA Type E.
Overload protection provided.
Color-coded leadwires for primary connections.

Specifications

Electrical Ratings-Primary: 277Vac
Electrical Ratings-Secondary: 26.5 V.O.C.
Frequency: 60 Hz
Frequency: 50 Hz
Mounting: Foot mounted
NEMA Rating: NEMA TYPE E
Electrical Connections (Primary)(in.): 12" Lead Wires
Electrical Connections (Secondary)(in.): 12? Lead Wires
Electrical Ratings-Output: 24 Vac at 48 VA
Dimensions: 2-15/16 in. deep x 2-7/32 wide
Temperature Ratings: -20 F to +105 F
Includes: Energy limiting overload protection
