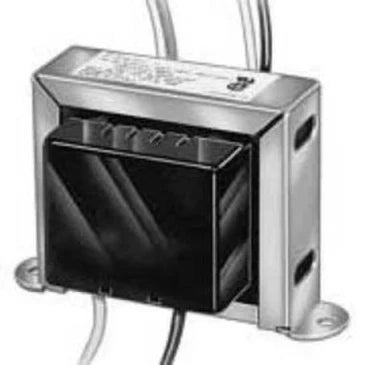

Name: Resideo AT150B1237/U Foot Mounted 120/208/240 Vac Transformer w/ 9 in. Lead Wires w/ Plastic End Caps, AT150B1237
Brand: Resideo
SKU: AT150B1237/U
Price: 57.73 USD
Availability: InStock

Resideo AT150B1237/U Foot Mounted 120/208/240 Vac Transformer w/ 9 in. Lead Wires w/ Plastic End Caps, AT150B1237

Roll over image to zoom in Click on image to zoom

Category: Fire Alarms
Stock: Sold Out - Call or Email for Lead Time
Weight: 0.99 lb
Brand: Resideo

Features:

Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.

Meet NEC Class 2 requirements.

Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.

Electrical Ratings -Primary Voltage: 120 Vac, 208 Vac, 240 Vac

Electrical Ratings -Secondary Voltage: 27.5 V.O.C.

Frequency: 60 Hz

Mounting: Foot-mounted

Electrical Connections (Primary)(in.): 9 in. leadwires with 1/4 in. male quick-connects

Electrical Connections (Secondary)(in.): 9 in. leadwires with 1/4 in. male quick-connects with plastic (2) end covers

Electrical Ratings -Output 24 Vac at 50 VA

Dimensions (in.): 1 11/16 in. high x 3 1/2 in. wide x 1 3/4 in. deep

Temperature Ratings (F): -20 F to +105 F

Approvals, Underwriters Laboratories Inc: UL Component Recognized: B, D, E models. File# E14881

Approvals, Canadian Standards Association: CSA Certified: A & B models

Includes : Plastic end caps

1-Year Warranty
30-Day Money-Back Guarantee
Same-Day Shipping (Cut-off time: 2:30 PM MST)
Worldwide Shipping
World-Class Customer Support
We Accept Payments in All Currencies

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Resideo AT150B1237/U Foot Mounted 120/208/240 Vac Transformer w/ 9 in. Lead Wires w/ Plastic End Caps, AT150B1237
