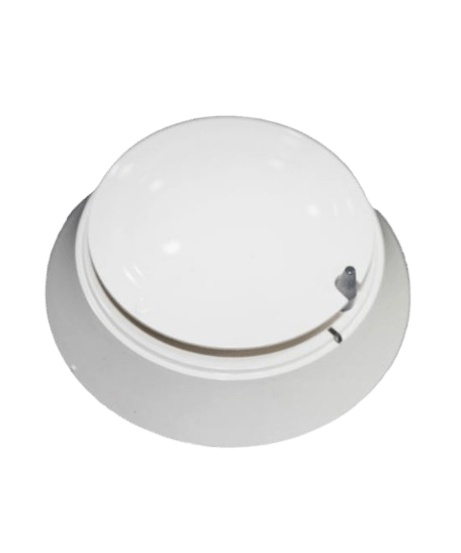

Gamewell-FCI MCS-PTIR Multi-Criteria Photoelectric, thermal and infrared smoke detector, Velociti, bright white color
MCS-PTIR Multi-Criteria Detectors are enables enhanced sensitivity to real fire with heightened immunity to nuisance particulates.
Multiple sensors and communication can greatly reduce nuisance alarms compared to single sensing methods.
Sophisticated algorithms maximize the advantages of all four sensor types creating our best detection strategy offering heightened immunity to nuisance particulate and enhanced sensitivity to real fire.
This ability to reject certain nuisance alarm triggers, such as theater smoke, supports the use of the detector in applications where moderate to heavy nuisance conditions exist that might cause single sensing detectors to trigger a false alarm.
The PTIR detector meets both UL 268 7th edition and UL 521 listing requirements and can indicate distinct smoke and heat alarms. This dual nature supports a local alarm setting for photoelectric detection and a general evacuation setting based on thermal detection. This can minimize work interruptions in multi-level buildings.
Bases
B501-WHITE: 4" Mounting base, white
B501-WHITE-BP: 4" mounting base, white, 10-pack
B501-IV: 4" Mounting base, ivory
B501-BL: 4" Mounting base, black
B300-6: 6" Flanged mounting base, white
B300-6-BP: 6" Flanged mounting base, white, 10-pack
B300-6-IV: 6" Flanged mounting base, ivory
B200S-WH: Intelligent addressable sounder base, white
B200S-IV: Intelligent addressable sounder base, ivory
B200S-LF-WH: Intelligent addressable sounder base, low-frequency, white
B200S-LF-IV: Intelligent addressable sounder base, lowfrequency, ivory
B224BI-WH: Isolator base, white
B224BI-IV: Isolator base, ivory
B224RB-WH: Relay base, white
B224RB-IV: Relay base, ivory
Accessories
SMB600: Surface mounting kit (flanged)
TR300: Trim ring, white
TR300-IV: Trim ring, ivory
CK300-IR: IR color kit (includes cover and trim ring), white,10-pack
CK300-IR-IV: IR color kit (includes cover and trim ring), ivory, 10-pack
CK300-IR-BL: IR color kit (includes cover and trim ring), black, 10-pack
RA100Z: Remote LED annunciator
M02-04-00: Detector test magnet
M02-09-00: Telescoping test magnet
