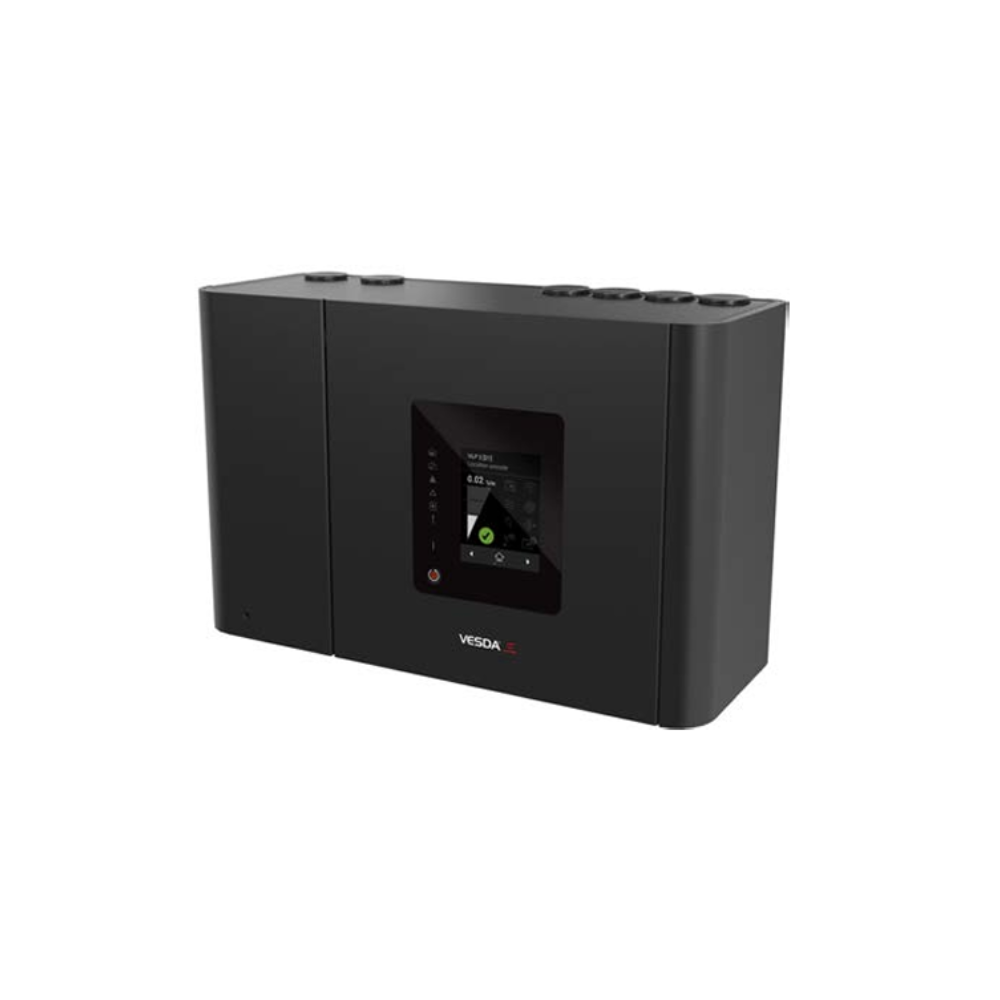

VESDA VEP VEP-A10-P-UL 4 Pipes Detector with 3.5" Touch Screen Display - Black 7th Edition
The VESDA-E VEP-A10-P-UL is an aspirating smoke detector (ASD) that provides very early warning of fire conditions by drawing air samples through an air sampling pipe network.
Features
The VEP-A10-P-UL detector contains the following features:
- Short wavelength laser based detection
- Inherent absolute calibration
- Clean air barrier for optics protection
- More robust contamination resistance
- Wide sensitivity range
- Flow fault thresholds configurable per port
- Long life, easy to replace air sample filter
- 3.5 inch colour touchscreen for status review
- Quiet operation
- Advanced remote diagnostics
- Area coverage:
- Up to 21,520 ft² (2,000 m²) (VEP-A10-P-UL)
- Up to four inlet pipes
- Total maximum pipe length:
- Four pipe VEP-A10-P-UL: 1,542 ft (470 m)
- Wide hole sensitivity balance up to 50 percent (simplifies installation)
- Referencing
- AutoLearn™ Smoke and Flow
- Seven programmable relays
- Two general purpose inputs, one monitored and one unmonitored
- Ultrasonic flow sensing
- Xtralis VSC, Xtralis VSM4 and ASPIRE PC software support
- IP40 enclosure (not UL tested)
- Easy mounting with steel support bracket
- Field replaceable aspirator, sampling module, filter and detection chamber
- VESDAnet networking
- Ethernet 100Base T
- Local host mode USB port
- Easy cable termination access
- Event log (20,000 events)
