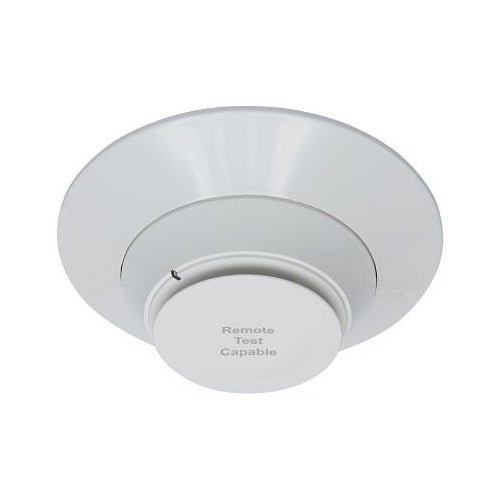

System Sensor SS-PHOTO-R Remote Test Smoke Detector

System Sensor SS-PHOTO-R SS-Series Photoelectric Smoke Detector for DNR(W) Duct Smoke Detectors, Remote Test Capable

The System Sensor SS-PHOTO-R is an intelligent addressable photoelectric smoke detector specifically designed for use with DNR and DNRW duct smoke detector housings. Featuring remote test capability, it allows technicians to perform functional testing without physically accessing the detector, making maintenance faster, safer, and more efficient.

Part of the advanced System Sensor SS-Series, the SS-PHOTO-R utilizes a redesigned photoelectric sensing chamber engineered to detect smoke from a wide range of combustion sources while helping reduce nuisance alarms. Detector sensitivity is continuously monitored by the compatible fire alarm control panel, ensuring dependable performance and simplified maintenance.

The detector features rotary address switches for quick device addressing, dual LEDs that provide 360-degree visibility, and a modern low-profile design suitable for commercial installations. Compatible with current SK, LiteSpeed, and SS Protocol systems, the SS-PHOTO-R offers reliable performance for HVAC duct smoke detection applications.

Key Features

• Intelligent addressable photoelectric smoke detector

• Designed for DNR and DNRW duct smoke detector housings

• Remote test capable for simplified maintenance

• Advanced photoelectric sensing chamber

• Detects smoke from a wide range of fire types

• Continuous sensitivity monitoring by the control panel

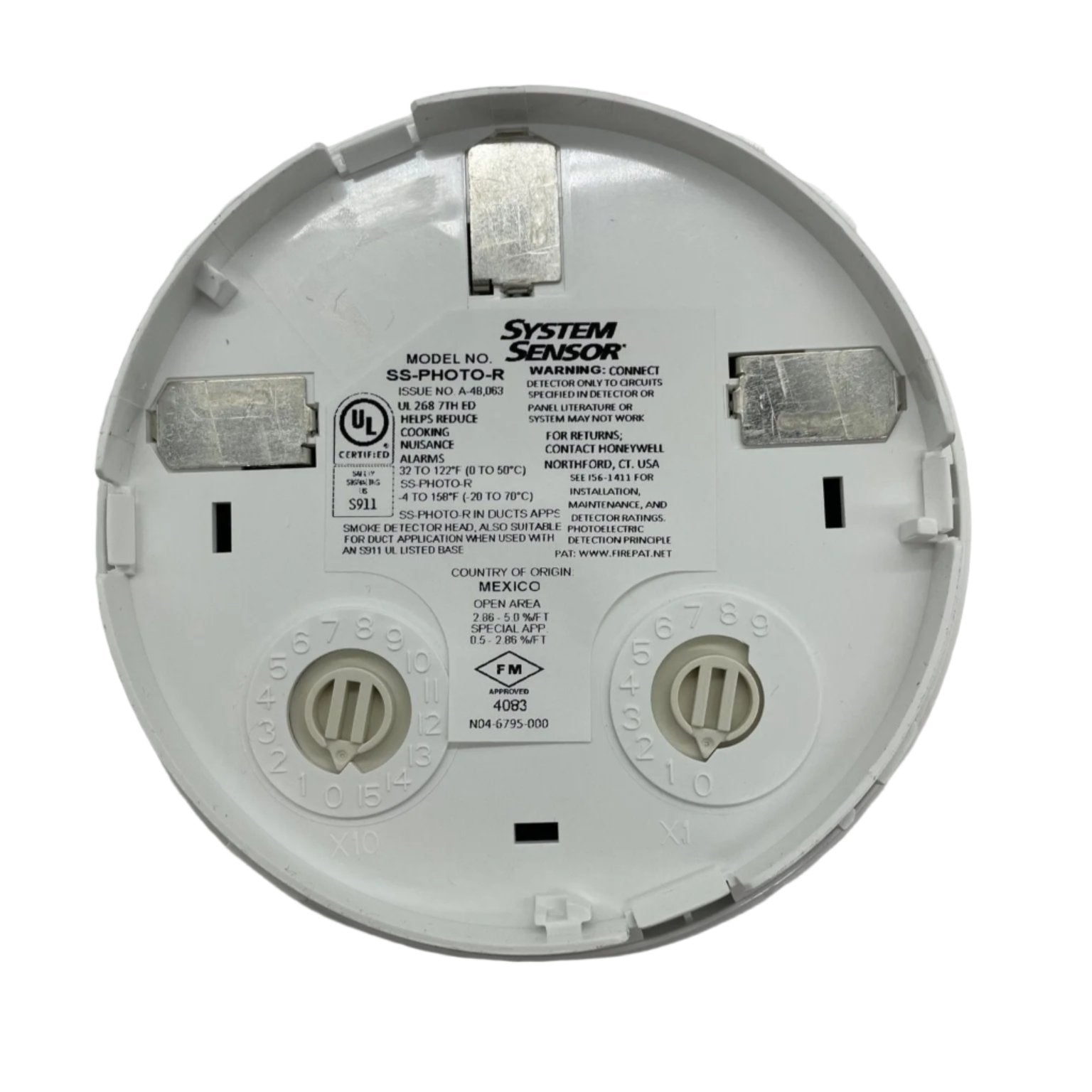

• Rotary decimal address switches

• Dual LEDs with 360-degree visibility

• Low standby current

• Modern low-profile design

• Plug-in construction for quick installation and replacement

• Compatible with SK, LiteSpeed, and SS Protocol systems

• UL 268 7th Edition and UL 268A certified

• Genuine System Sensor SS-Series detector

Applications

The System Sensor SS-PHOTO-R is ideal for:

• HVAC duct smoke detection

• Commercial office buildings

• Hospitals

• Schools and universities

• Hotels

• Retail facilities

• Warehouses

• Industrial buildings

• Air handling units

• Intelligent addressable fire alarm systems

Specifications

• Manufacturer: System Sensor

• Model: SS-PHOTO-R

• Product Series: SS-Series

• Product Type: Intelligent Photoelectric Smoke Detector

• Detection Method: Photoelectric

• Installation: Indoor

• Application: DNR and DNRW duct smoke detector housings

• Communication: Addressable analog

• Addressing: Rotary decimal switches

• Remote Test Capability: Yes

• LED Indicators: Dual LEDs with 360-degree visibility

• Housing Color: White

• Standby Current: Low current design

• Compatibility: SK, LiteSpeed, and SS Protocol fire alarm systems

• Certifications: UL 268 7th Edition and UL 268A

Why Choose the System Sensor SS-PHOTO-R?

The System Sensor SS-PHOTO-R provides dependable smoke detection for HVAC duct applications while making maintenance significantly easier through its built-in remote test capability. Its intelligent addressable communications, advanced photoelectric sensing chamber, continuous sensitivity monitoring, and compatibility with DNR(W) duct detector housings make it an excellent choice for modern commercial fire alarm systems requiring efficient testing and reliable performance.
