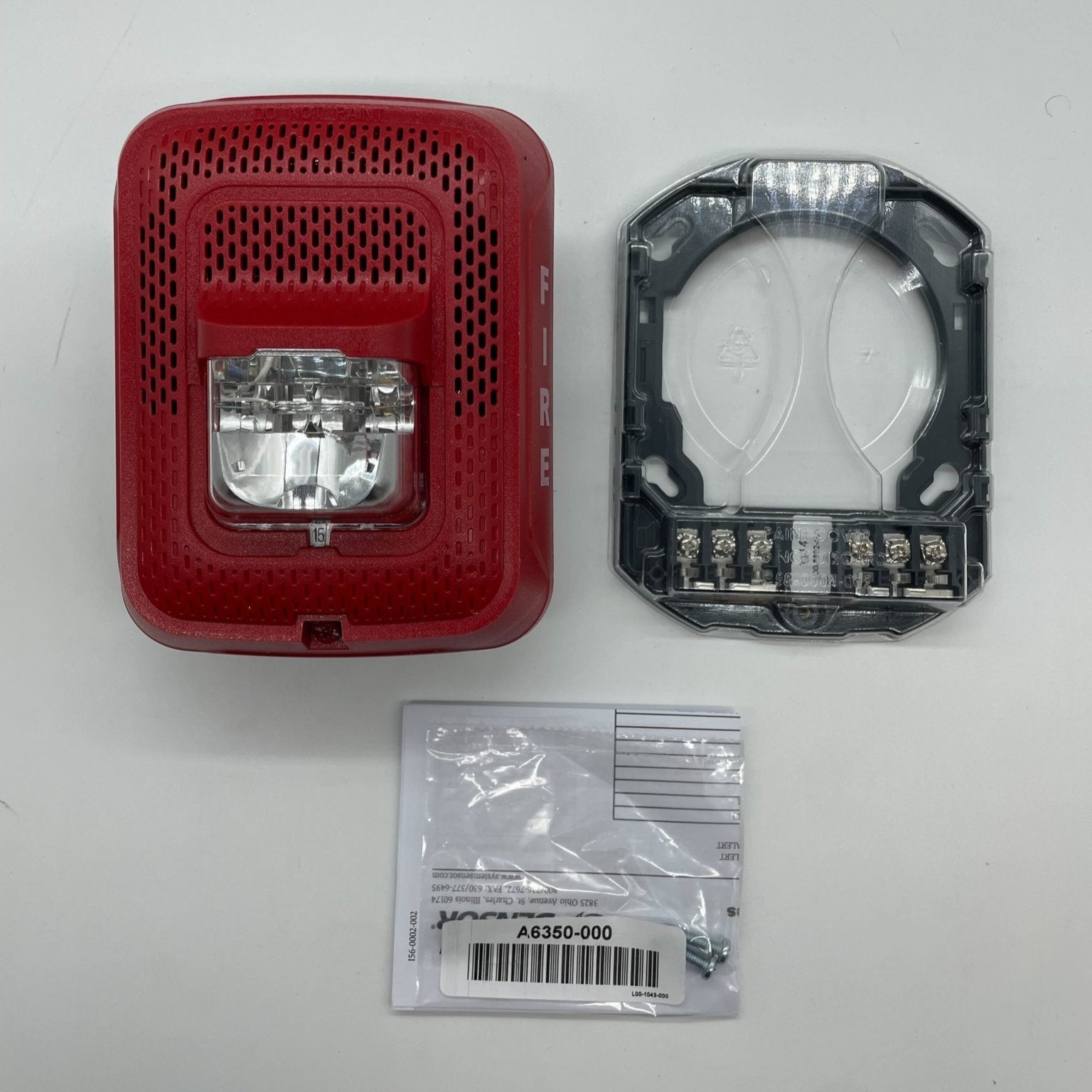

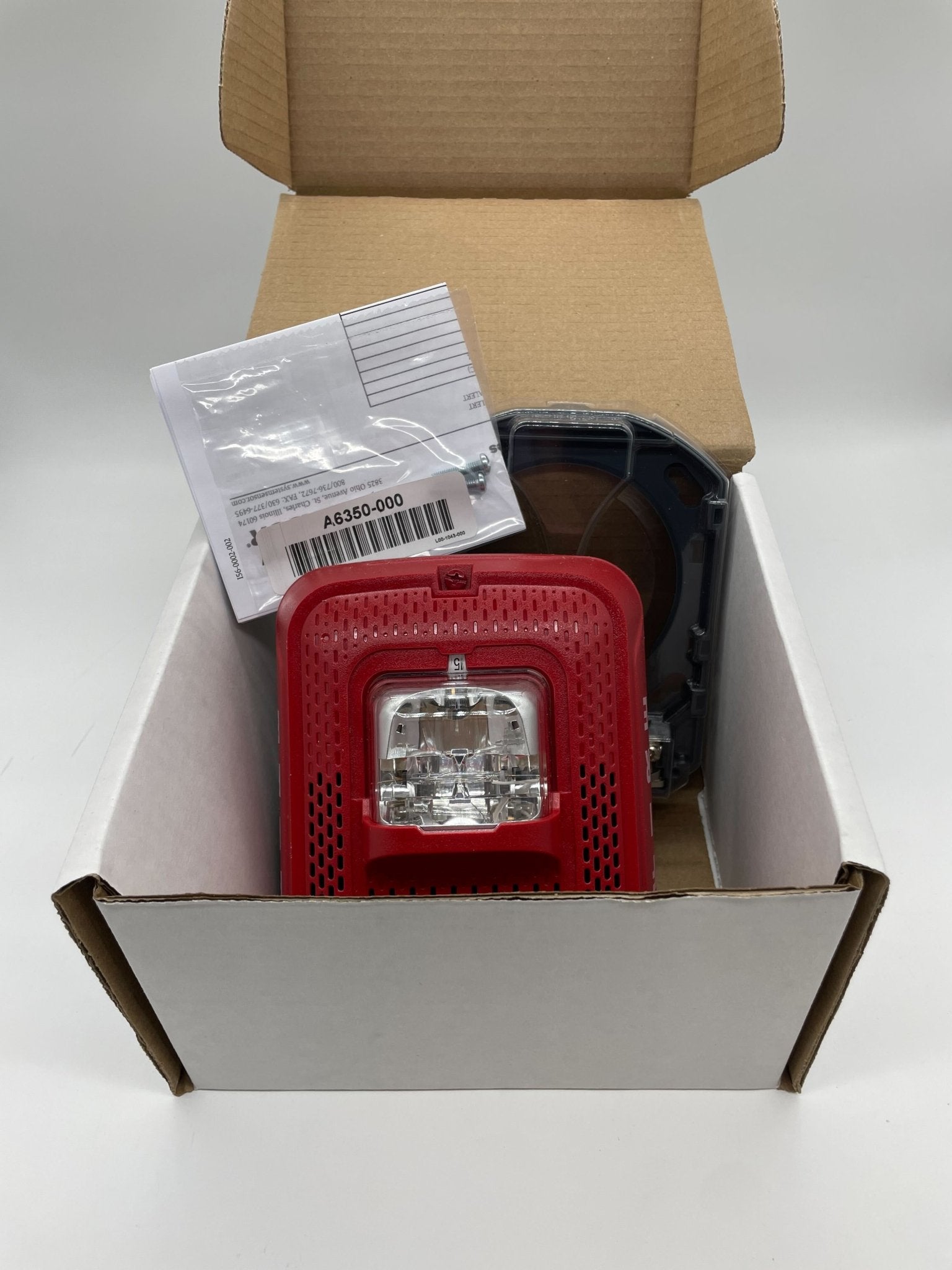

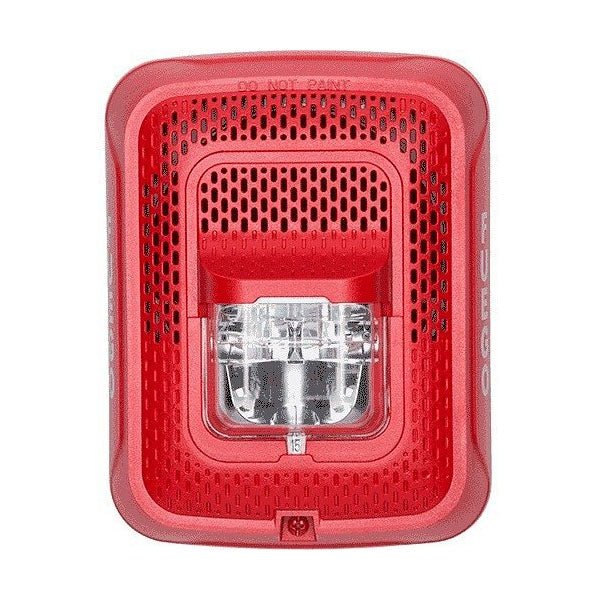

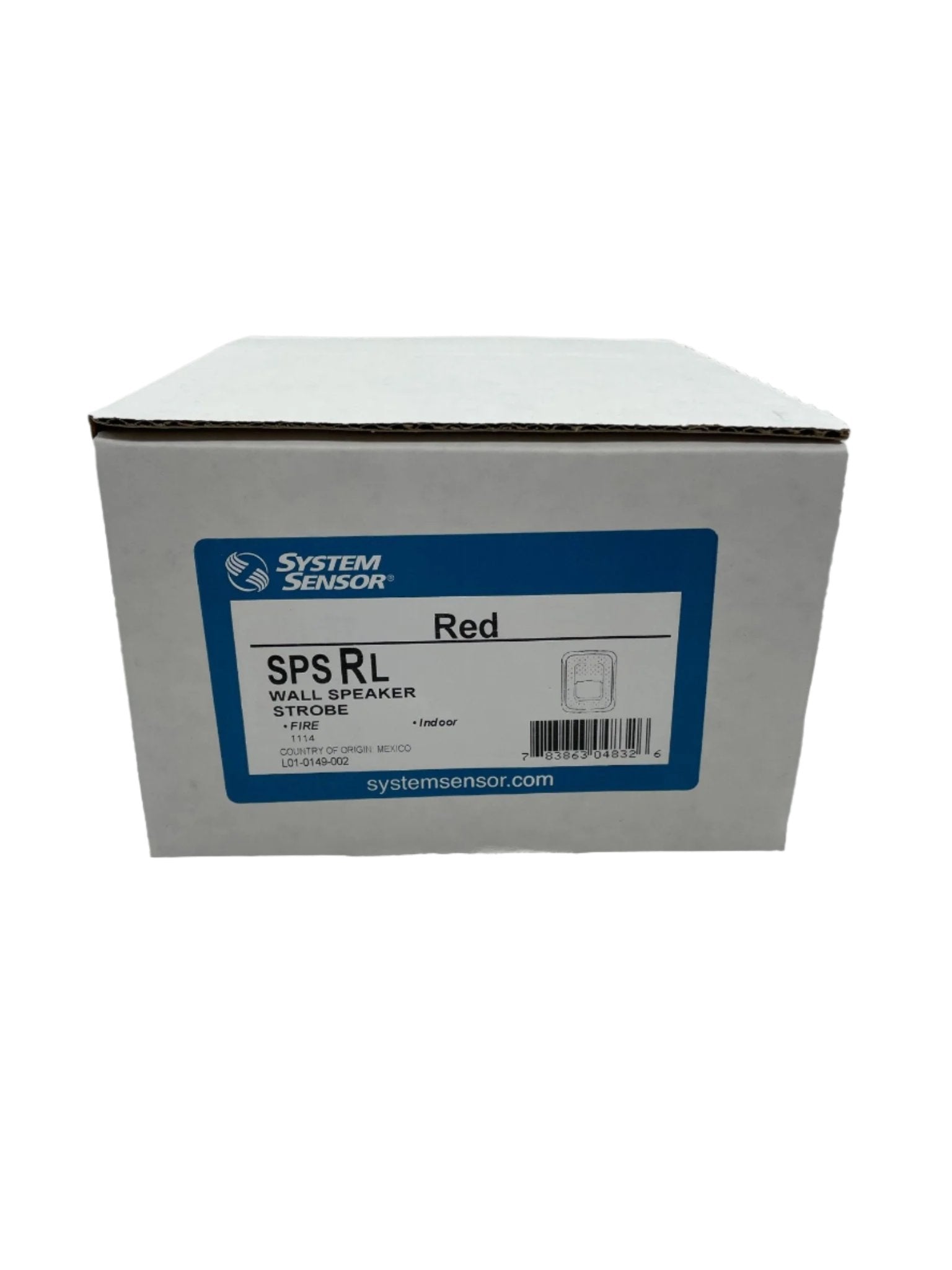

System Sensor SPSRL L-Series Indoor Speaker Strobe, Wall Mount, "FIRE" Marking, Red (Replaced by SPSRLED)
L-Series, red, wall-mountable, clear lens, speaker strobe marked "FIRE". Selectable strobe settings: 15, 30, 75, 95, 110, 135, and 185 cd.
Main Features
- Plug-in design and protective cover reduce ground faults.
- Universal mounting plate with an onboard shorting spring tests wiring continuity before installation.
- No extension ring required.
- Field selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177.
- Automatic selection of 12- or 24-volt operation at 15 and 30 candela.
- Rotary switch simplifies field selection of speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1 and 2 watts).
- Speakers offer high fidelity and high volume sound output.
- 520 Hz +/- 10% square wave tone capable with compatible FACP.
- Compatible with System Sensor synchronization protocol.
- Electrical compatibility with existing SpectrAlert and SpectrAlert Advance products.
